How Much You Know About The Drum Closure Dimension?

Product introduction

Embedded flange closure system, in accordance with international standard: BS EN ISO 15750-3:2008


1. scope


This standard specifies in detail the structural characteristics, dimensions and surface coating quality of steel barrel embedded flange closure systems.


2. an overview of the


Using mechanical locking metal embedded threaded flange and barrel plug closed, and by other materials or synthetic materials such as plastic, synthetic rubber and other parts, to ensure that the steel drum seal leakage device.


3. Flange and elastic flange liner


3.1 size

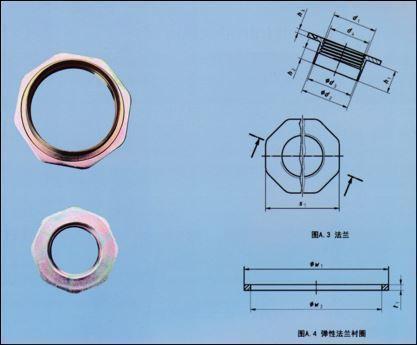

The structure and shape of flange and elastic flange liner are shown in Figure A.3 and Figure A.4 below, and the specifications and dimensions are shown in Table A.1.


Flange and elastic flange liners are shown as follows:

Table A.1 Flange and elastic bushing (unit: mm)


Thread

Nominal thread diameter

Flange dimensions

Dimensions of elastic flange liners


d1

d2±0.3

d3±0.3

d4±0.3

h1±0.5

h2±0.5

h3±0.4

s1±0.3

w1×w2×t1
 ±1.0×±1.0±0.5

G3/4

a

29.0

27.2

24.5

13.5

7.2

2.0

43.7

32×27.3×2.6

G2

a

62.4

60.2

57.1

16.5

7.9

2.0

77.9

67×60×2.6


3.2 Material and structure

How Much You Know About The Drum Closure Dimension

The materials used for flanges should meet the requirements of ISO 3573 or ISO3574, and other suitable materials can also be used to meet the requirements of users. The material type of elastic flange liner can be selected according to the agreement between the supplier and the supplier.

Steel barrel plug and elastic rubber gasket or thermoplastic gasket


4.1 size


Steel barrel plugs and elastic rubber gaskets or thermoplastic gaskets are shown in Figure A.2 and FIGURE A.3 below, and specifications and dimensions are shown in Table A.4. Steel barrel plugs and elastic rubber washers or thermoplastic washers are shown as follows:

Table A.4 Steel barrel plug and elastic plug Washer (unit: mm)

Thread

Nominal thread diameter

Plug dimensions

Dimensions of elastic plug liners


d1p1±0.5p2±0.7p3±0.7p4±1.5Pt1±0.2

w1×w2×t1

±1.0×±1.0±0.5

G3/4

a

28.1

20.5

13.7

8.5

8.5

1.2

25.5×20.3×2.4

G2

a

61.2

53.6

15.5

33.5

11.5

1.2

56.0×50.5×2.7

4.2 Material and structure


The materials used for barrel plugs should meet the requirements of ISO3573 or ISO3573, and other suitable materials can also be used.


The installation position of the parts embedded in the barrel plug groove shall not be more than 0.5 mm from the center.


Barrel cold washers are made of elastic materials, thermoplastic materials are also suitable. The specific type of elastic material or thermoplastic material can be selected according to the agreement between the supplier.
